| DEC2838G | Output Power 输出功率: 1W~14W | Weight 重量: 150g (Approx.) |
Brushless DC Gear Motor-Typical Application 无刷直流减速电机-典型应用 Home Application: Electric Window, Electric Curtain, Actuator, Small Appliances, Portable Equipment 家用电器：电动窗，电动窗帘，小家电，便携式器材 Industry Facility: Transmission Equipment, Gear System, Actuator 工业设备：传动机械，齿轮系统，致动器 Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor, Small Percussion Drill 电控设备：电动阀门，小型转换器，灯光调节器，电动扳手 Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine 商业设备：电动门禁，银行设施，ATM机，售卖机 Personal Care: Massager, Stroker, Vibrator 个人护理：按摩器，摩挲器，振动器 | |||
Model 型号 | 电压 Voltage(V) | No Load 空载 | Rated Load 额定负载 | Stall 堵转 | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (Nm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (Nm) | Current (A) | |
DEC2838G-S01 (Gear Ratio 5.2) | 8-26 | 12 | 176 | 0.26 | 0.612 | 104 | 1.34 | 8.34 | 1.03 | 2.50 |
DEC2838G-S02 (Gear Ratio 24) | 8-26 | 12 | 65 | 0.24 | 0.750 | 45 | 0.61 | 3.53 | 3.80 | 1.6 |
DEC2838G-S03 (Gear Ratio 51) | 8-26 | 12 | 145 | 0.23 | 0.816 | 104 | 1.54 | 7.14 | 1.21 | 2.50 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI 特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

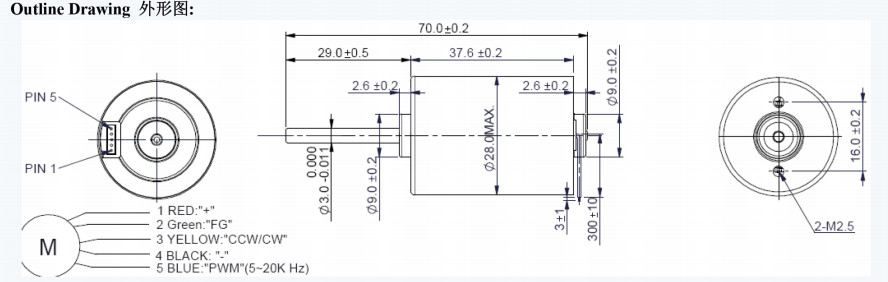

Outline Drawing 外形图:
Unit: Millimeter |

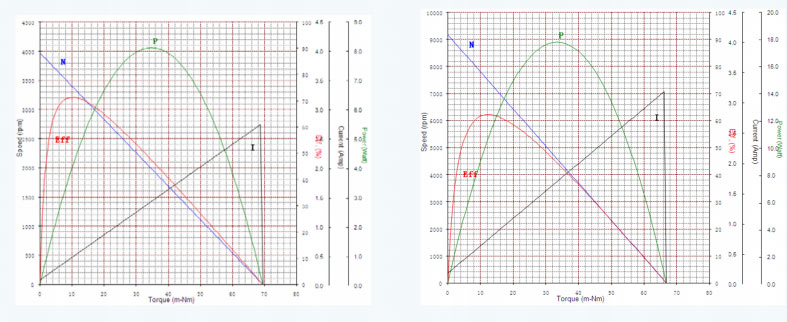

BLDC Motor Performance Curve 无刷电机性能曲线:
DEC2838G-S01(Bare Motor) 12V | DEC2838G-S03(Bare Motor) 12V |
